Mess around with Azure: Migrate Maximo to Cloud

28 June 2020 / / 1 Comment
Last week, while attending a call to discuss an integration interface between Maximo and an Azure SQL database, the other consultant mentioned a few Azure terms like “blob storage”; I realized I didn’t know anything about Azure despite the fact that the cloud platform has been adopted by the large number of the clients I work with. So today, I decided I should play around a bit with it by trying to migrate a Maximo instance from my local VM to Azure.

Before I go into the technical details, for those of you non-technical readers, I like to sum up the whole experience I had with this platform in one word: magical. That’s it, I went to the website, signed up for a trial account, followed some wizards or clicked on a few buttons or menus that I think were features I need, and boom, I got a running Maximo instance on the cloud in just a few hours. No training, no muss, no fuss, everything just works. Not much else to say. I’m in love now. I think will spend the next couple of weeks, months or even years to learn more about Microsoft stuff.

Below are
the steps that I took:

1.1. Sign up for a trial account. After created the account, I was given $260 AUD to spend on paid services

1.2. I went straight to the portal and tried to create a new VM. Being cheap as I am, I went to the lowest option of 1 CPU + 3.5GB RAM. I know to install Maximo, I’ll need at least 8GB, but in this case, I just wanted to see if I can fit Windows, Websphere and Maximo into a box this size
1.3. Next page, I gave the VM a 256GB SSD data disk
1.4. For network setting, I gave it a Public IP as I want to access Maximo from public Internet
1.5. On the next few pages, I left the default settings and proceeded to create the VM. After about 5 minutes, the VM was created. I clicked on “Connect”, and it downloaded an RDP shortcut which will open the Remote Desktop app on my laptop and pre-populated it with the IP address of the machine. I struggled at this step a bit because I forgot that I created a Window user account in the 1st step. Thus, I tried to use my Microsoft account instead and it failed. After a few failed attempts and a quick google search, I remembered the details and entered MaxDM76AzureUser for account name, could login with that. The machine is extremely fast and responsive, feels like working on a local server rather than some remote sessions on the cloud (Now I remember how frustrating I was having to deal with the sluggish Maximo SaaS Flex DEV server). Download files gave me a rate of 50-70MB/s (that’s megabytes per second not Mbps)

<This screen was
captured after the fact as I forgot to take a screenshot of this step>
2.1 Next step, I tried to create an SQL DB. I put it in the same Resource Group as the Maximo App Server VM Because, naturally, I think all resources for an application should be put in one Resource Group as the name suggests. To be honest, I still have no idea what it is now. On the “Server” drop-down, since it is empty, I had to click on “Create New” and created a new server. I think we cannot remote access to this one like a VM, just a logical name to manage an SQL instance.

2.2 On the Networking page, I chose Public Endpoint for Connectivity Method because I thought I need to access the DB from SQL Studio on my Laptop, and Allow Azure services and resources to access this server because I think this option lets Maximo on App Server VM to access the DB. It turned out I couldn’t figure out how to access the DB using SQL Studio on my laptop (more on this later), but the second option works exactly as it supposed to do.
2.3 Default settings for the next few pages then I proceeded to create the DB.
2.4 I attempted to connect to the DB using SQL Studio on my laptop but it didn’t work. However, I tried to install SQL Studio on the Azure VM and it worked on the first try.
3.1 Now I had a server and a DB, I proceeded with Maximo migration. I backed-up the SQL DB in my VM to a DMP file, uploaded it to Azure VM, and tried to Restore it to Azure SQL. It turned out on-premises SQL Server is different to Azure SQL, and I can’t do that. A quick google search revealed that I had to export the DB into a *.bacpac file, then import it to Azure.
3.2 The whole export/import of bacpac file was straight-forward with a minimum number of clicks, and no confusion. After it’s done, I realized the import process restored the DB from my VM, and I ended up with two DBs, so I had to delete the empty one I created in the earlier step.
3.3 I struggled a bit trying to create a new ‘maximo’ user. Turned out the way security logins and users are managed in Azure SQL is a bit different, so after a bit of googling, I found some scripts I could use. So here is the notes I wrote down for this step
– Right click the “Database Folder”, to add a new Query window:
CREATE LOGIN maximo WITH PASSWORD =
‘SuperSecret!’
– Right click the ‘maxdm7609’ to add a new Query window:
  CREATE USER maximo FOR LOGIN maximo WITH
default_schema = dbo;
  ALTER ROLE db_owner ADD MEMBER maximo;
4.1 Next step is to install Websphere, a quick check before installing showed I had 2.3 GB RAM left, I thought could make Websphere to take 1GB and Maximo 1GB, so I proceeded with the installation.
4.2 It turned out that although I can install Websphere successfully, the automated process to prepare the environment for Maximo failed due to Out-of-Memory error. I know we could manually configure WebSphere  and make it works, but what’s the point in wasting time doing that? So I uninstalled Websphere, upgrade the VM to the next lowest option which has 2 CPU and 8GB RAM, then attempted to install Websphere again, which worked this time.

4.3 I uploaded a pre-built maximo.ear file from my local laptop to Azure VM, deployed it to Websphere, then updated the connection string to point to the Azure SQL DB. Connection string is almost exactly the same as connecting Maximo to a local SQL DB. And it worked immediately after I tried to start MXServer after deployment.
(Installing Websphere and Deploying maximo is not the topic of this post, so I’m not going to put the details of those steps here)

5.1 Now I got Maximo running on the VM, I wanted to access it from the Web, so I went to the VM’s Networking page, and opened port 80 inbound for the VM, but it still didn’t work. After a bit of fussing around, I remembered I had to open the port on the VM’s Windows Firewall as well. After opened port 80 on both two firewalls, it worked like a charm, I could access Maximo from my laptop using the VM’s public IP
5.2 I wanted to have a DNS to access it as well, so in the VM’s IP setting, I set it to Static (which I think will prevent it to change even if I shutdown the VM), and put a DNS name label.
5.3 Right after I clicked on Save, I can access Maximo using a DNS alias. Mission accomplished
I have a fair share of experience with various software and platforms ranging from great, good, bad, or horrible. I can live with bad software, but it irritates me to the bone. I feel good when playing with good software. In this case, I think Microsoft has done everything right designing the Azure platform, I felt nothing but joy throughout this whole learning process. My next step is probably to recommend anyone I meet to put Maximo on Azure if they are considering moving to cloud.

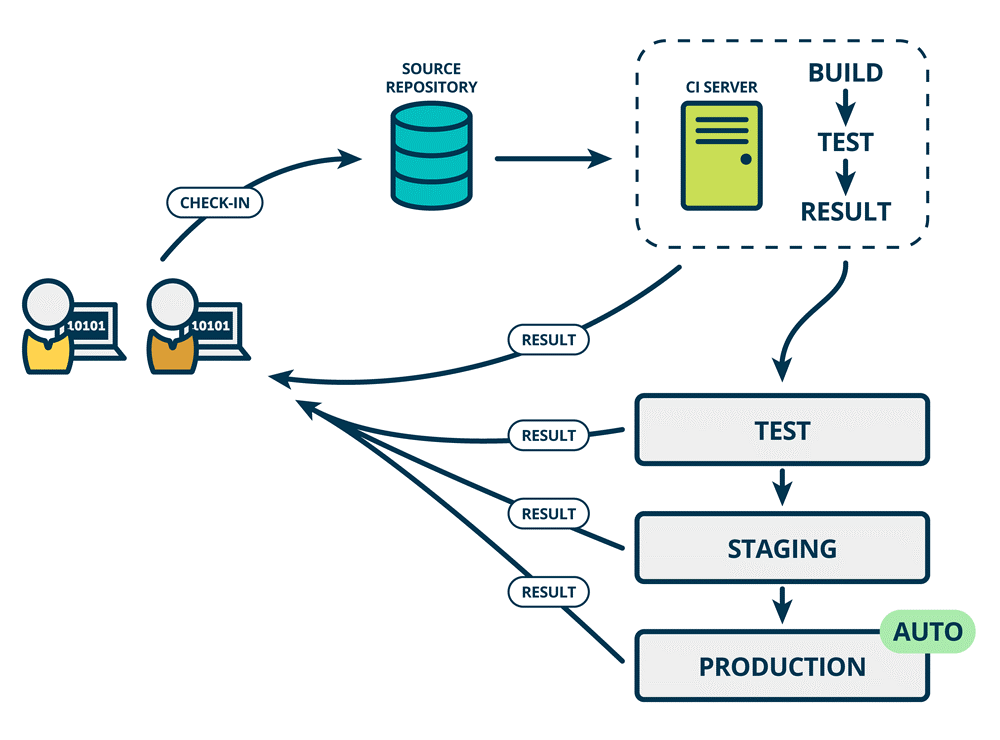

Fully automated CI/CD with DBC script

How to generate DBC Script for Maximo? (2023)

5 December 2019 / / 9 Comments

This post includes some of my notes on using DBC for the deployment of Maximo’s configuration. In case you wonder why using DBC, the short answer is if you’re happy with whatever method you’re using to deploy configuration, whether it is manual or using Migration Manager, ignore this post. But if you’re looking for a way to streamline the development process for a large team by collaborating and source controlling using GIT, or if you want to fully automate the deployment process, DBC is the way to go.

IBM has been using DBC script for a long time, but only recently, they published a
reference guide so 3rd party consultants like us can use it. DBC Script can be used to automate most of the common configuration for Maximo. It has standard commands to create/modify common low-level objects like tables, indexes, domains etc. For many other configurations that don’t have a specific DBC command, we still can handle the deployment using the <freeform> or <insert> statement to put anything into Maximo DB. Below are some specific notes on certain types of changes:

DB Configuration and System Objects:

Operations to add/modify many low-level objects like tables, views, maxvars… are available as DBC commands. However, manually writing all of the scripts can be laborious. We can instead make the changes from Maximo’s front end, then generate a DBC script for the changes by using the ScriptBuilder.bat tool (found under tools/maximo/internal). Simply add the objects you want to generate script, then choose File > Generate Script. The script file will be created in the same folder:

Application Design

The standard method to export/import XML files using App Designer is simple enough and suitable for version control. However, if we want to fully automate the deployment process (for CI/CD) we can export the changes to DBC script using the mxdiff.bat tool (found under tools/maximo/screen-upgrade). For example, if we add a new column to the List tab of the Work Order Tracking app, we can export the XML files of the before and after versions of the app. Copy the two files into the screen-upgrade folder and execute this command:

mxdiff.bat -bWOTRACKOLD.XML -mWOTRACKNEW.XML -t001.mxs

It will produce the script as shown in the image below. (Do note that the extension for changes in app layout design should be .mxs instead of .dbc)

Automation Script

For simple manual deployment, I still prefer to use the Import/Export function as it is very convenient. Note that the permission to see the Import/Export buttons is not granted to maxadmin by default. Thus, you have to give it to the maxadmin security group first.

However, if we need to generate DBC for automated deployment, we can use the following approach. First, create an automation script called GENDBC with the source code below:

Now, whenever we need to generate a DBC file for an automation script, execute the GENDBC tool above by calling it from a browser:

https://[MAXIMO_HOST]/maximo/oslc/script/gendbc?source=SCRIPT&name=[YOUR_SCRIPT_NAME]

The output DBC file will be created in the /script folder, under your Integration Global Directory (specified in the mxe.int.globaldir system property)

Note: I recently found out this approach doesn’t work with Oracle database. It gave me the error below. In the project I worked with, we used a tool created by someone else and I can’t share it here. If you’re using Oracle, you can try the tool created by Jason @ Sharptree.

Invalid column type: getString/getNString not implemented for class oracle.jdbc.driver.T4CBlobAccessor

Integration Artifacts

To generate DBC script for integration artifacts such as Object Structure, JSONMAP, Publish Channel etc., we can also use the GENDBC tool mentioned above. For example:

  • To extract Object Structure, run the script with the following parameters:
https://[MAXIMO_HOST]/maximo/oslc/script/gendbc?source=MEA&name=[OBJECT_STRUCTURE_NAME]
  • To extract Publish Channel:
https://[MAXIMO_HOST]/maximo/oslc/script/gendbc?source=MEA&pubChannel=[PUBLISH_CHANNEL_NAME]
  • To extract Enterprise Service:
https://[MAXIMO_HOST]/maximo/oslc/script/gendbc?source=MEA&entService=[ENT_SERVICE_NAME]
  • To extract JSON Mapping:
https://[MAXIMO_HOST]/maximo/oslc/script/gendbc?source=JSONMAP&name=[JSONMAP_NAME]

The output files for Object Structure, Publish Channel, and Enterprise Service will be in the [GlobalDir]/mea folder. And the output for JSONMAP will be in the [GlobalDir]/jsonmap folder

Other configurations

For many other configurations such as escalation, messages, workflow etc., there is no standard DBC command to create or modify those objects. However, all such configurations are stored inside Maximo’s database and if we can export and then import the correct data to the target environment, it would work well (some objects will require a Maximo restart to refresh the cache). The easiest method is to use the geninsertdbc.bat tool. To use it, we simply have to give it a table name and a where clause, it will generate the data found as DBC insert statements.

For example, to export all rows of the table MAXINTOBJECT for the object structure ZZWO we can run the command below:

geninsertdbc.bat -tMAXINTOBJECT -w"INTOBJECTNAME='ZZWO'" -fOUTPUT

The output file will look like below:

Note:This tool has one problem. It generates Null value as an Empty string. Thus, it could cause errors in certain logic that requires the value to be Null such as when using mbo.isNull(“FieldName”). I found it worked most of the time for me, but it did cause me some headaches in a few instances. To fix it, we can delete these lines from the generated DBC script or add another UPDATE SQL statement to correct it. I now only this tool for simple configurations. For a more complex configuration data, I use Oracle SQL Developer or SQL Server Management Studio to generate the INSERT statement instead

The main tables that contain configuration for some common objects are
listed below:

  • Escalation: ESCALATION, ESCREFPOINT
  • Cron Task: CRONTASKDEF , CRONTASKINSTANCE
  • Workflow: WFPROCESS, WFNODE, WFASSIGNMENT
  • Saved Query: QUERY
  • Start Center Template: SCTEMPLATE

Note: for Start Center and Result sets to be displayed correctly, there are other dependent objects that need to be migrated such as Object Structure, security permission etc.
