Getting Started with Maximo’s Custom Control (Part I)

2: Now let’s register this file as a component:

• Go to folder: maximoapplicationsmaximoproperties
• Edit the component-registry.xml file, and add the following piece of code just under the root <component-registry ….> tag

• As you can see here, we simply declare a component called “mylabelcomponent”, and point it to our mylabel.jsp file

3: Now let’s define our new control:

• In the same maximoproperties folder, edit the control-registry.xml file, and add the following piece of code under the root <control-registry….> tag :

4: Deploy:

• Build maximo.ear file
• Deploy ear to Websphere
• Start Maximo server.
• After Maximo started, open Application Designer, export the Asset application to edit XML file and add the following tag to the Main page, just above the Asset field.

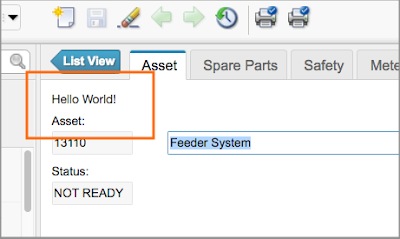

• Import the XML file back to Maximo. Then open the Asset application, and open any asset to go to the Main tab, you should see your “Hello World” message on top of the tab:

5: Make it a bit more interesting with embedded Youtube Video:

• Open any Youtube video, click on Share, and click on Embed, then copy embedded HTML code snippet it provides
•  Open our mylabel.jsp file, replace the <div>Hello World!</div> code with the embedded HTML code snippet provided by youtube. Below is an example of the mylabel.jsp file content:

After making this modification, open Asset application again, and you will see the video is now embedded in your application:

6 – Make it dynamic:

• To this point, you have done exactly what Richard Gebhardt taught us in his blog post. If you do read the JSP code he provided, you will notice he left us with some hints. For example, this line:  MboRemote mbo = control.getPage().getDataBean().getMbo();
• Let’s capitalise on this and modify our JSP again to add a few lines:

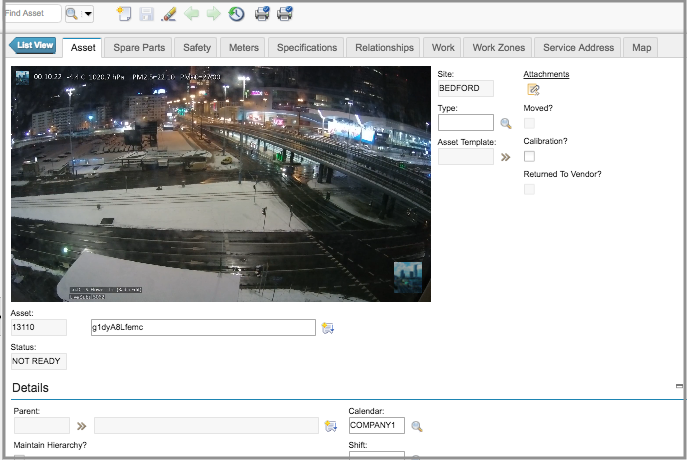

• Store a Youtube video’s ID into an Asset’s description field. Re-open the application, and open the asset record. It will now load the video ID you entered instead of a hard-coded link.

(Youtube Video ID is the code string after the youtube.com/watch?v=. For example: https://www.youtube.com/watch?v=g1dyA8Lfemc )

At this stage, we can see a lot of real-world applications can be done with this capability to embed content from other websites into Maximo. For example, we can embed a real-time streaming surveillance video of certain locations or assets, and allow maintenance personnel to view directly when opening the location or asset record in Maximo.

In the next post, I will show you how to add more modifications to handle real-world requirements.

 *TIPS*:

• If you couldn’t start Maximo and receive something like InitializationError, it’s probably because your XML code in the control-registry or component-registry is not correct, review your code, and try again. Most likely that you forgot to close a tag, which makes it unable to parse the whole registry XML file.
• You can directly edit the files in the Websphere’s installedApps folder to avoid the build process every time you make a small change.
• You can also unzip the “properties.jar” file to a “properties.jar” folder, and then remove the jar file. In this case, it doesn’t require you to stop Maximo to edit the registry XML files.
• With the above tricks, your changes to the control’s and component’s properties, JSP, and CSS file will take effect instantly. But please note that you still have to restart Maximo if you define a new control or component.
• Also note that with changes to CSS and Javascript files (which I will mention in follow-up posts), you will be better off by always disabling caching on the browser. Otherwise, you will not see the change as the browser still uses older files. On Chrome, you can open the Developer windows, move to Network Tab, and check on the “Disable Cache”. As long as you leave this Developer window open, Chrome will always download the latest CSS and Javascript files.
